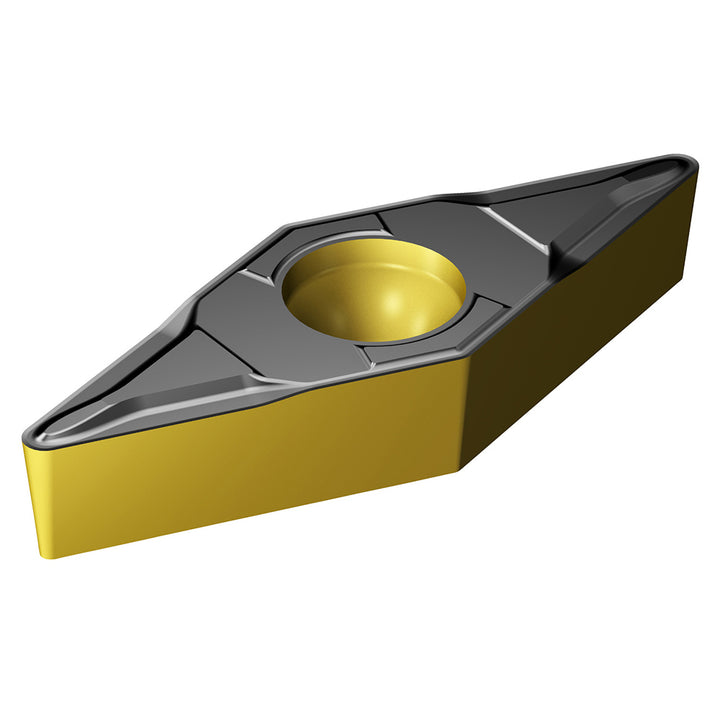

VCMT 11 03 04-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861056

Sandvik Coromant

VCMT 11 03 04-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861056

MFR# 7861056ISO/ANSI# VCMT1103Cat# VCMT 221-PFSeries CoroTurn 107

$27.20List $34.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861056 is a VCMT 11 03 04-PF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeVCMT1103
Ansi size code1103
Chip breakerPF
Chip breaker operationFinishing
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Industry standard numberVCMT 11 03 04-PF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code1103
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 11 03 04-PF 4425
Iso insert codeVCMT1103
Iso size code1103
Manufacturers catalog numberVCMT 221-PF
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
