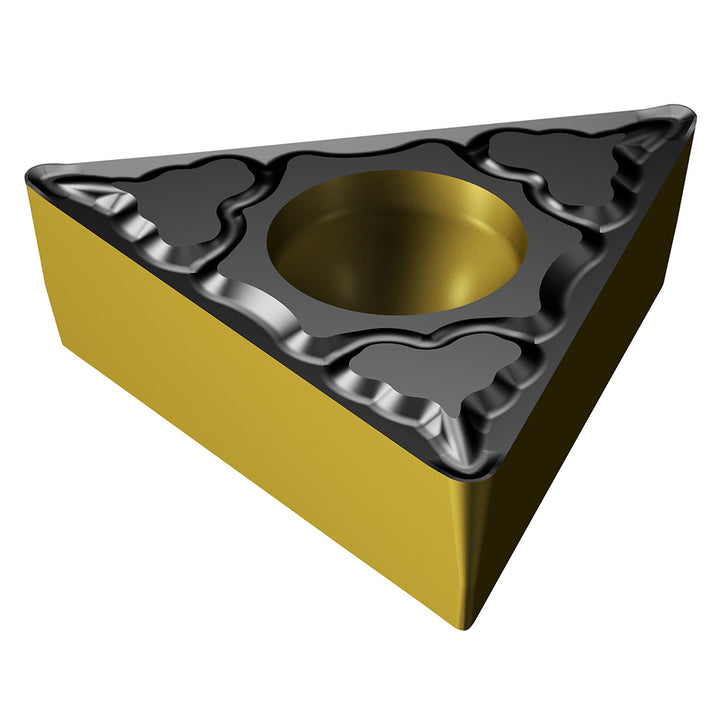

TCMT 16 T3 12-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861071

Sandvik Coromant

TCMT 16 T3 12-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861071

MFR# 7861071ISO/ANSI# TCMT16T312Cat# TCMT 3(2.5)3-PMSeries CoroTurn 107

$21.72List $27.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861071 is a TCMT 16 T3 12-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeTCMT32.53
Ansi size code32.53
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTCMT 16 T3 12-PM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code16T3
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 12-PM 4425
Iso insert codeTCMT16T312
Iso size code16T312
Manufacturers catalog numberTCMT 3(2.5)3-PM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
