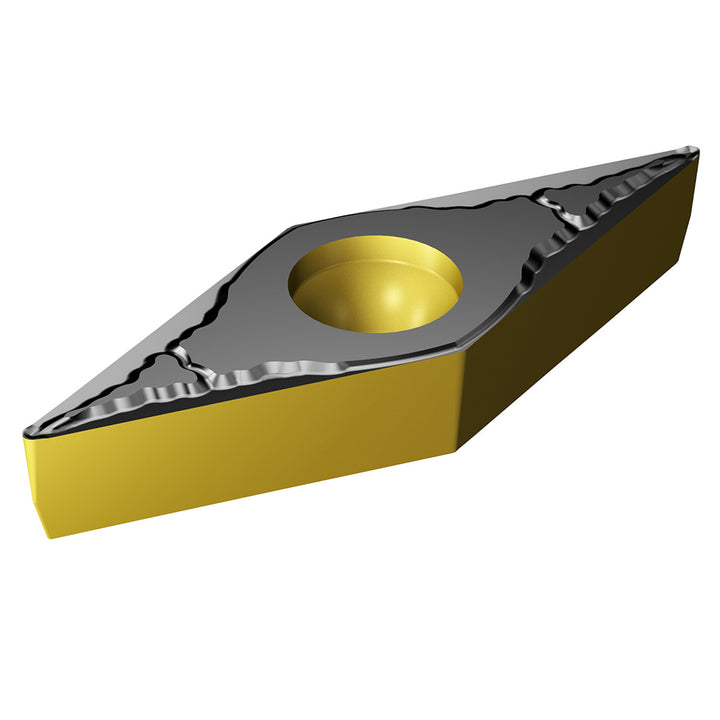

VBMT 16 04 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861073

Sandvik Coromant

VBMT 16 04 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861073

MFR# 7861073ISO/ANSI# VBMT 16 04 08-PM 4425Cat# VBMT 332-PMSeries CoroTurn 107

$27.01List $34.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861073 is a VBMT 16 04 08-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Chip breakerPM
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Industry standard numberVBMT 16 04 08-PM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-PM 4425
Manufacturers catalog numberVBMT 332-PM
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
