Sandvik Coromant
SNMG 09 03 04-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861086
MFR# 7861086ISO/ANSI# SNMG 09 03 04-QM 4425Cat# SNMG 321-QMSeries T-Max P
$12.51List $15.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
Grade4425
MaterialCarbide
CoatingAl2O3
Description

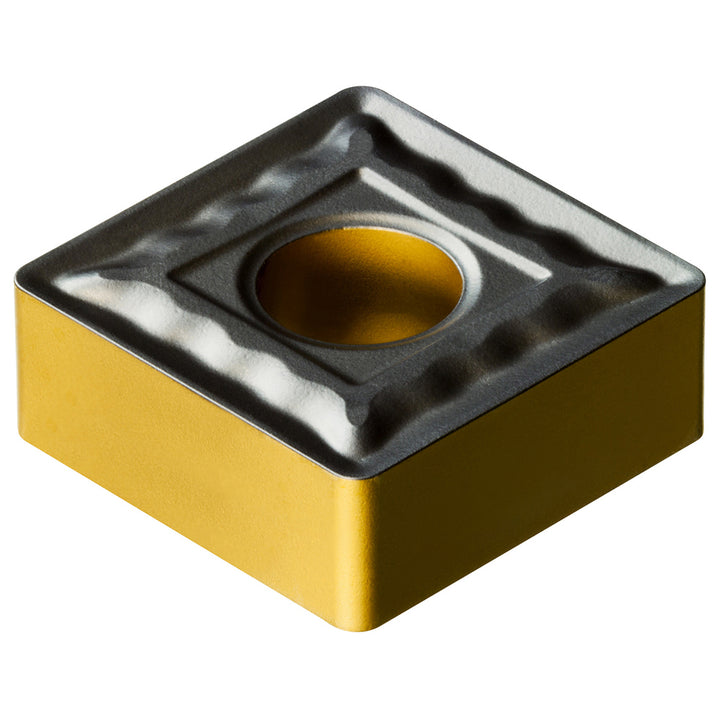

The Sandvik Coromant 7861086 is a SNMG 09 03 04-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Industry standard numberSNMG 09 03 04-QM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeRound
Insert size code090304
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG 09 03 04-QM 4425
Manufacturers catalog numberSNMG 321-QM
Manufacturer grade4425
Relief angle0
Tolerance codeM
