Sandvik Coromant

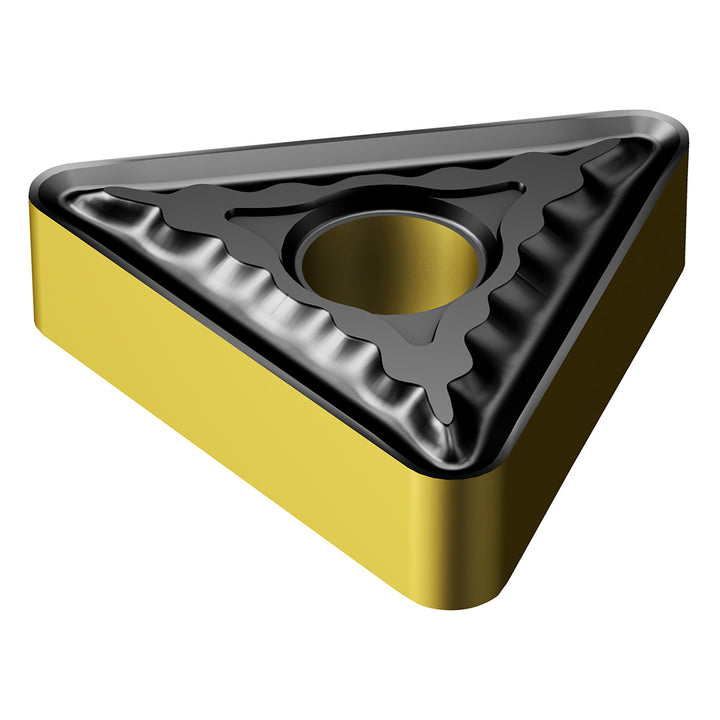

TNMG 11 03 04-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861094
MFR# 7861094ISO/ANSI# TNMG 11 03 04-QM 4425Cat# TNMG 221-QMSeries T-Max P
$10.48List $13.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861094 is a TNMG 11 03 04-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.0890
Included angle60
Industry standard numberTNMG 11 03 04-QM 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 11 03 04-QM 4425
Manufacturers catalog numberTNMG 221-QM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
