Sandvik Coromant

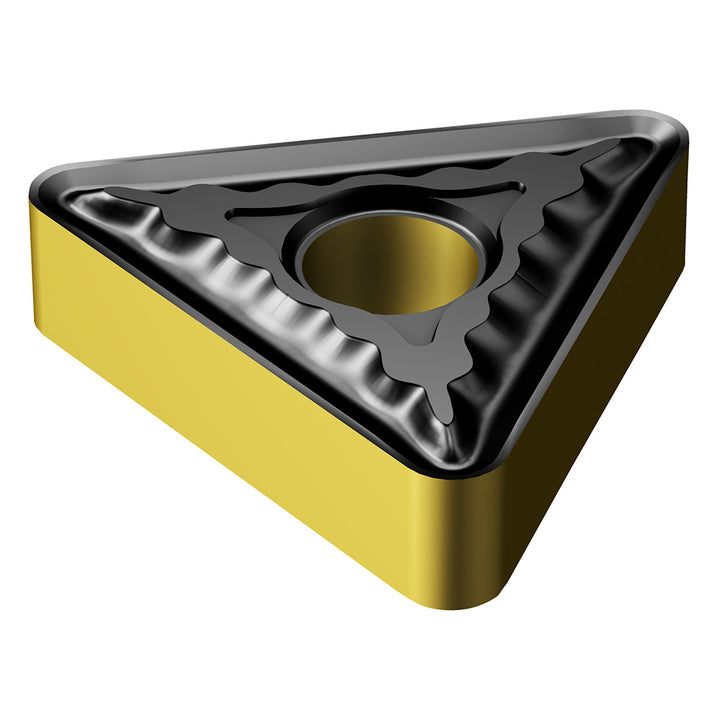

TNMG 16 04 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861100
MFR# 7861100ISO/ANSI# TNMG 16 04 12-QM 4425Cat# TNMG 333-QMSeries T-Max P
$17.33List $21.84
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861100 is a TNMG 16 04 12-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTNMG 16 04 12-QM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code160412
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 12-QM 4425
Manufacturers catalog numberTNMG 333-QM
Manufacturer grade4425
Relief angle0
Tolerance codeM
