Sandvik Coromant

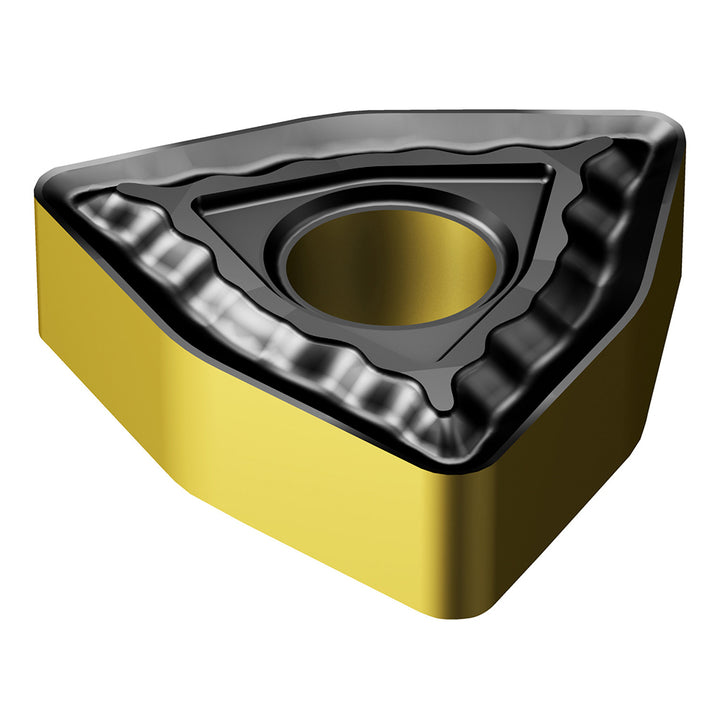

WNMG 06 04 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861102
MFR# 7861102ISO/ANSI# WNMG 06 04 12-QM 4425Cat# WNMG 333-QMSeries T-Max P
$17.03List $21.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861102 is a WNMG 06 04 12-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberWNMG 06 04 12-QM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code060412
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 12-QM 4425
Manufacturers catalog numberWNMG 333-QM
Manufacturer grade4425
Relief angle0
Tolerance codeM
