TCMT 06 T1 04-UF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861110

Sandvik Coromant

TCMT 06 T1 04-UF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861110

MFR# 7861110ISO/ANSI# TCMT 06 T1 04-UF 4425Cat# TCMT 1.2(1.2)1-UFSeries CoroTurn 107

$14.82List $18.68 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

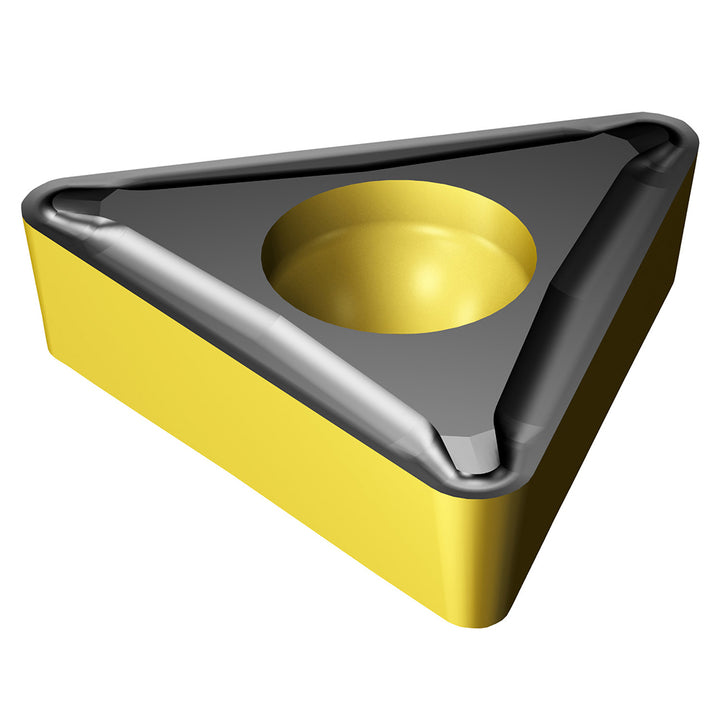

The Sandvik Coromant 7861110 is a TCMT 06 T1 04-UF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

ChipbreakerUF
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code06T1
Insert styleTCMT
Iso codeTCMT 06 T1 04-UF 4425
Manufacturers catalog numberTCMT 1.2(1.2)1-UF
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
