Sandvik Coromant

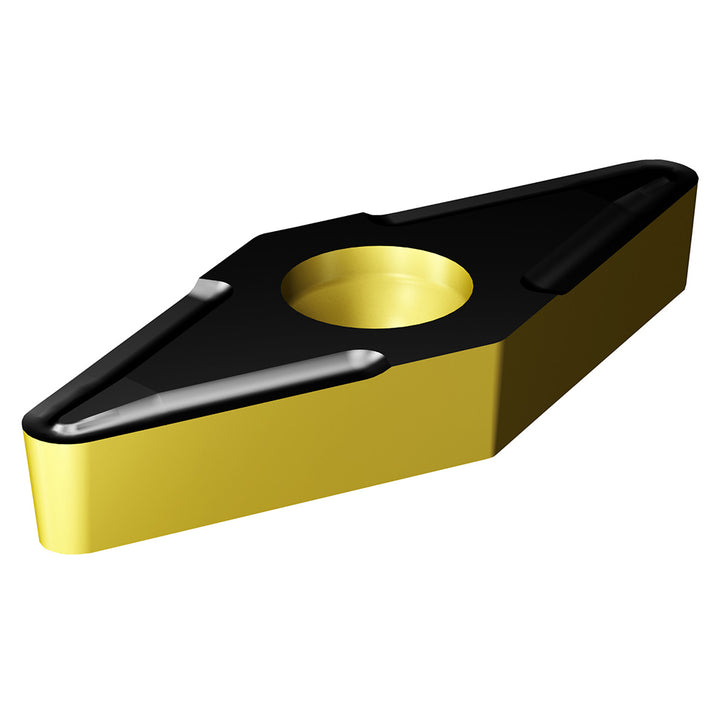

VBMT 11 02 08-UF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861117
MFR# 7861117ISO/ANSI# VBMT 11 02 08-UF 4425Cat# VBMT 2(1.5)2-UFSeries CoroTurn 107
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861117 is a VBMT 11 02 08-UF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Industry standard numberVBMT 11 02 08-UF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1102
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 08-UF 4425
Manufacturers catalog numberVBMT 2(1.5)2-UF
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
