Sandvik Coromant
CCMT 06 02 08-UM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861118
MFR# 7861118ISO/ANSI# CCMT 06 02 08-UM 4425Cat# CCMT 2(1.5)2-UMSeries CoroTurn 107
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description

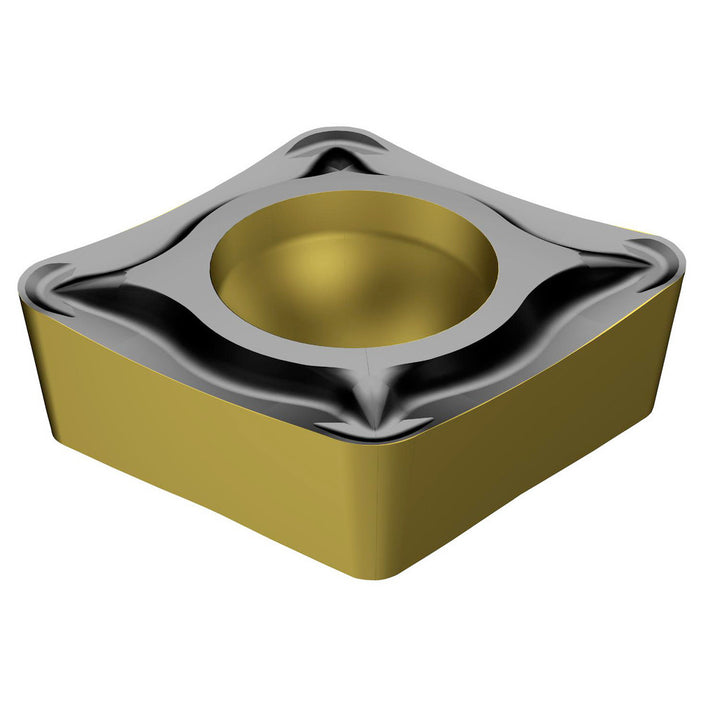

The Sandvik Coromant 7861118 is a CCMT 06 02 08-UM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Hole diameter0.1102
Included angle80
Industry standard numberCCMT 06 02 08-UM 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0602
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 08-UM 4425
Manufacturers catalog numberCCMT 2(1.5)2-UM
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
