Sandvik Coromant

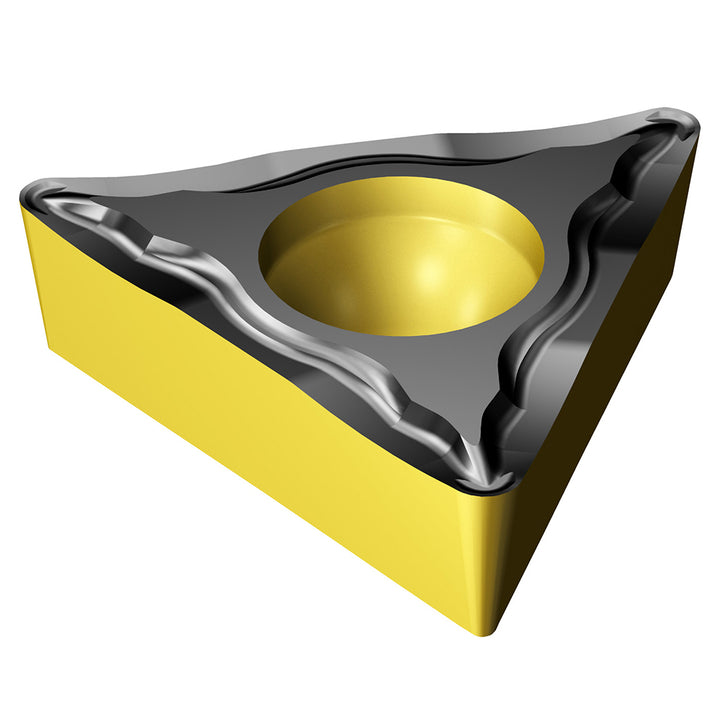

TCMT 09 02 04-UM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861119
MFR# 7861119ISO/ANSI# TCMT 09 02 04-UM 4425Cat# TCMT 1.8(1.5)1-UMSeries CoroTurn 107
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861119 is a TCMT 09 02 04-UM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.0984
Included angle60
Industry standard numberTCMT 09 02 04-UM 4425
Inscribed circle in7/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code0902
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-UM 4425
Manufacturers catalog numberTCMT 1.8(1.5)1-UM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
