Sandvik Coromant

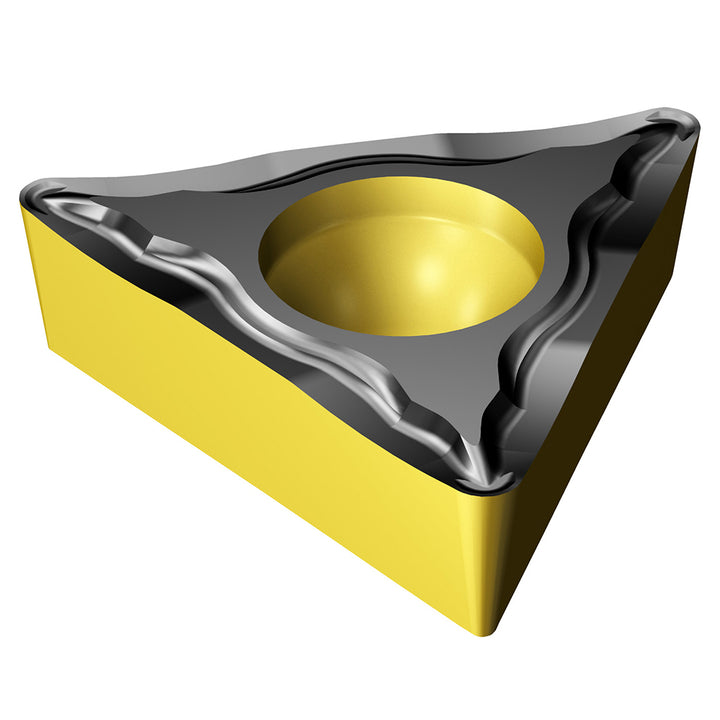

TCMT 11 02 08-UM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861122
MFR# 7861122ISO/ANSI# TCMT 11 02 08-UM 4425Cat# TCMT 2(1.5)2-UMSeries CoroTurn 107
$17.35List $22.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861122 is a TCMT 11 02 08-UM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Industry standard numberTCMT 11 02 08-UM 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1102
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 08-UM 4425
Manufacturers catalog numberTCMT 2(1.5)2-UM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
