Sandvik Coromant

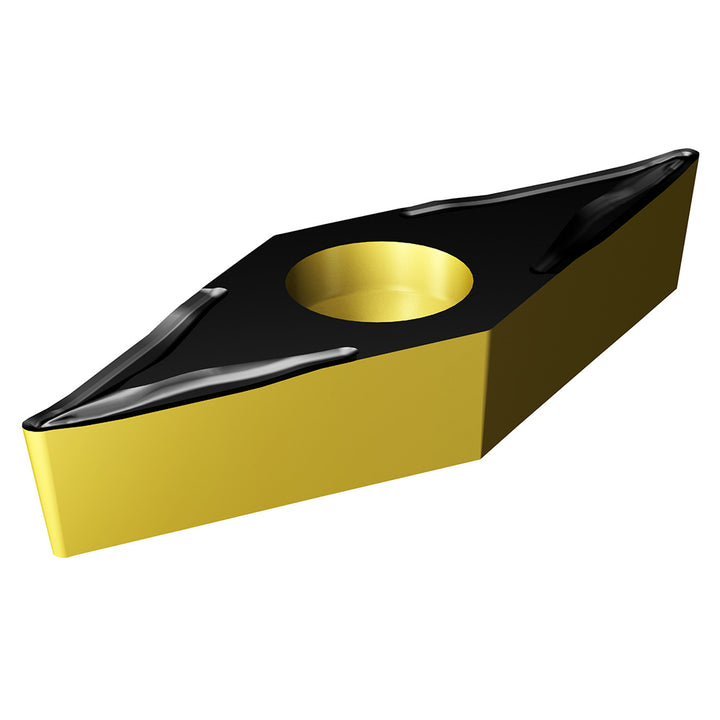

VBMT 16 04 12-UM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861127
MFR# 7861127ISO/ANSI# VBMT 16 04 12-UM 4425Cat# VBMT 333-UMSeries CoroTurn 107
$27.46List $34.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861127 is a VBMT 16 04 12-UM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle35
Industry standard numberVBMT 16 04 12-UM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code160412
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 12-UM 4425
Manufacturers catalog numberVBMT 333-UM
Manufacturer grade4425
Relief angle5
Tolerance codeM
