TCMT 16 T3 12-UR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861134

Sandvik Coromant

TCMT 16 T3 12-UR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861134

MFR# 7861134ISO/ANSI# TCMT 16 T3 12-UR 4425Cat# TCMT 3(2.5)3-URSeries CoroTurn 107

$22.10List $27.86 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

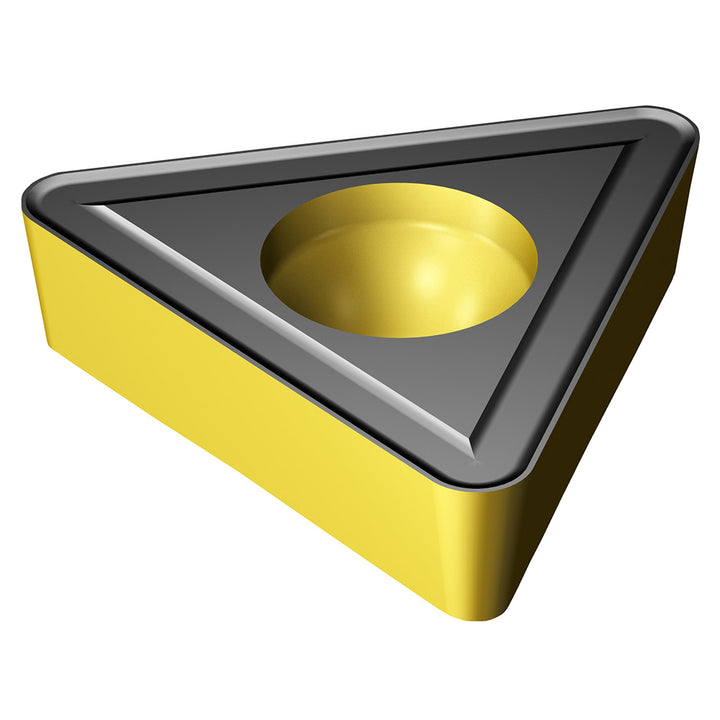

The Sandvik Coromant 7861134 is a TCMT 16 T3 12-UR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Chip breakerUR
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.1732
Included angle60
Industry standard numberTCMT 16 T3 12-UR 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code16T3
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 12-UR 4425
Manufacturers catalog numberTCMT 3(2.5)3-UR
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
