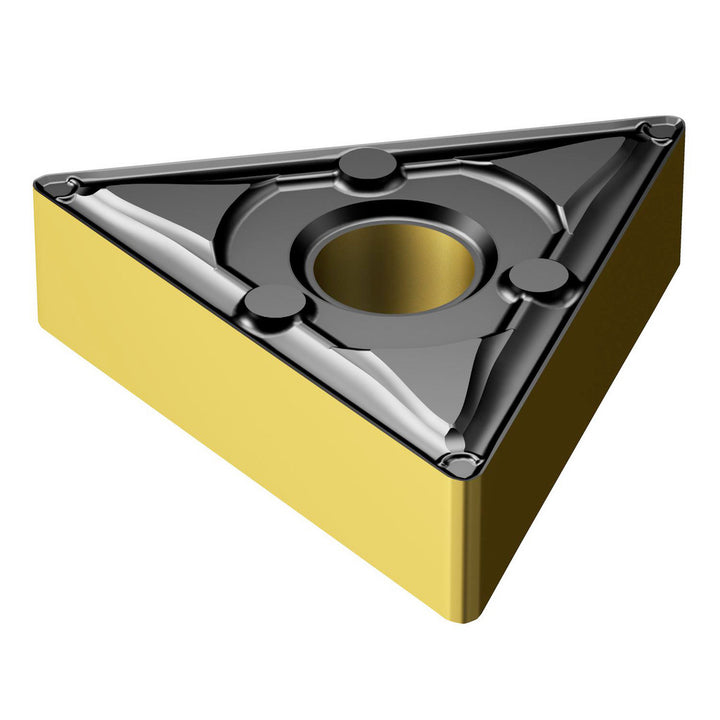

TNMX 16 04 04-WF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861138
MFR# 7861138ISO/ANSI# TNMX 16 04 04-WF 4425Cat# TNMX 331-WFSeries T-Max P
$21.14List $27.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861138 is a TNMX 16 04 04-WF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle60
Industry standard numberTNMX 16 04 04-WF 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1604
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 16 04 04-WF 4425
Manufacturers catalog numberTNMX 331-WF
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
