Sandvik Coromant

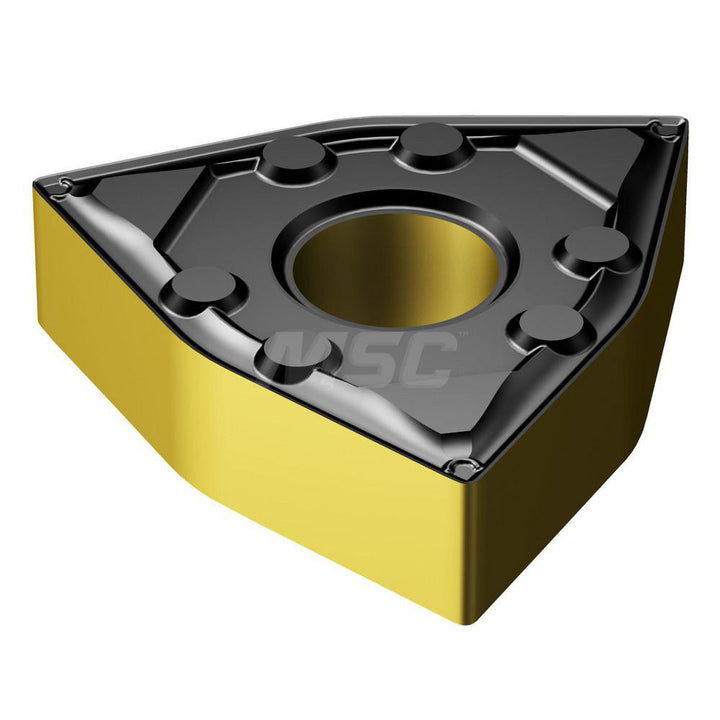

WNMG 06 04 04-WF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861140
MFR# 7861140ISO/ANSI# WNMG 06 04 04-WF 4425Cat# WNMG 331-WFSeries T-Max P
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861140 is a WNMG 06 04 04-WF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle80
Industry standard numberWNMG 06 04 04-WF 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-WF 4425
Manufacturers catalog numberWNMG 331-WF
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
