Sandvik Coromant

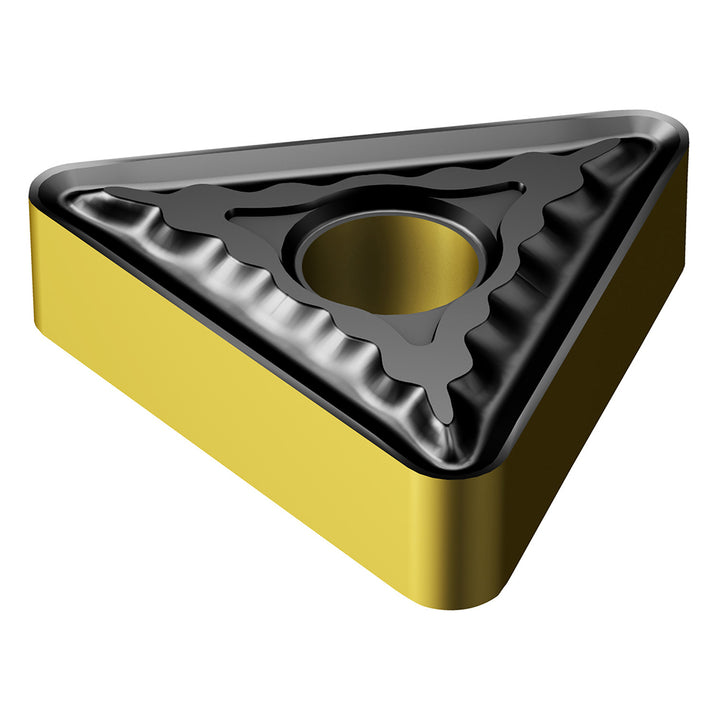

TNMG 22 04 08-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861240
MFR# 7861240ISO/ANSI# TNMG 22 04 08-QM 4425Cat# TNMG 432-QMSeries T-Max P
$23.04List $29.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861240 is a TNMG 22 04 08-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 22 04 08-QM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-QM 4425
Manufacturers catalog numberTNMG 432-QM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
