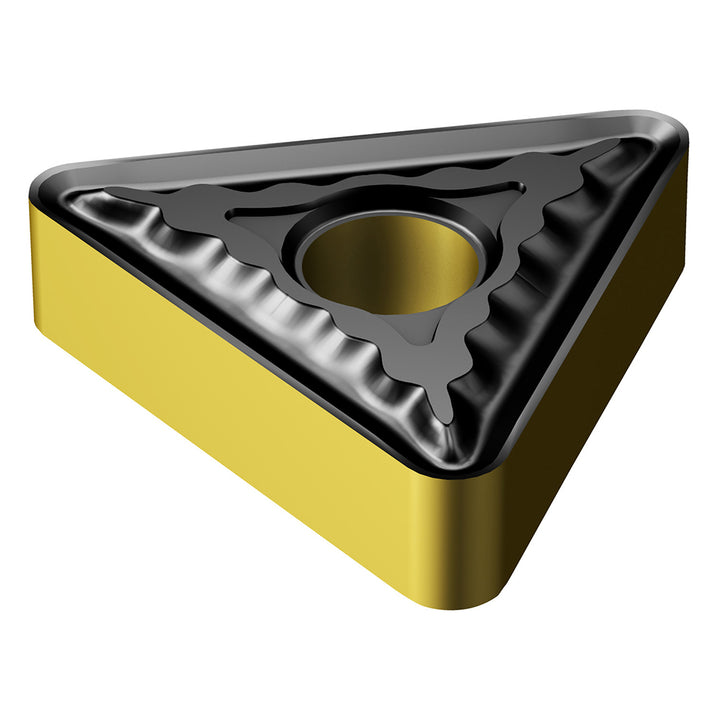

TNMG 22 04 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861241

Sandvik Coromant

TNMG 22 04 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861241

MFR# 7861241ISO/ANSI# TNMG220412Cat# TNMG 433-QMSeries T-Max P

$24.88List $31.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861241 is a TNMG 22 04 12-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeTNMG433
Ansi size code433
Chip breakerQM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 22 04 12-QM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 12-QM 4425
Iso insert codeTNMG220412
Iso size code220412
Manufacturers catalog numberTNMG 433-QM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
