Sandvik Coromant

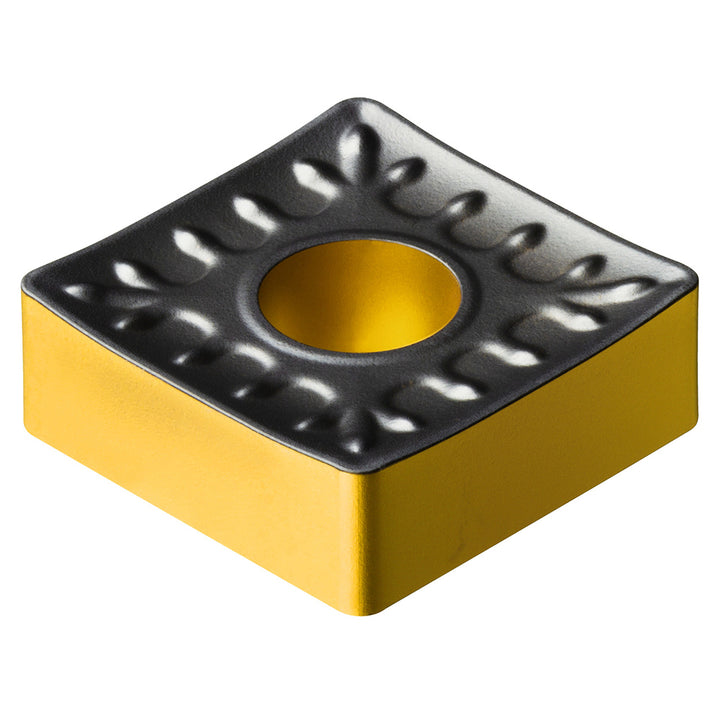

SNMM 15 06 16-QR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861251
MFR# 7861251ISO/ANSI# SNMM150616Cat# SNMM 544-QRSeries T-Max P
$32.67List $41.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861251 is a SNMM 15 06 16-QR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Ansi insert codeSNMM544
Ansi size code544
Chip breakerM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Industry standard numberSNMM 15 06 16-QR 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeS - Square
Insert size code150616
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 15 06 16-QR 4425
Iso insert codeSNMM150616
Iso size code150616
Manufacturers catalog numberSNMM 544-QR
Manufacturer grade4425
Relief angle0
Side clearanceNegative
Tolerance codeM
