Sandvik Coromant
TCMT 22 04 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861261
MFR# 7861261ISO/ANSI# TCMT 22 04 08-PM 4425Cat# TCMT 432-PMSeries CoroTurn 107
$30.32List $38.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description

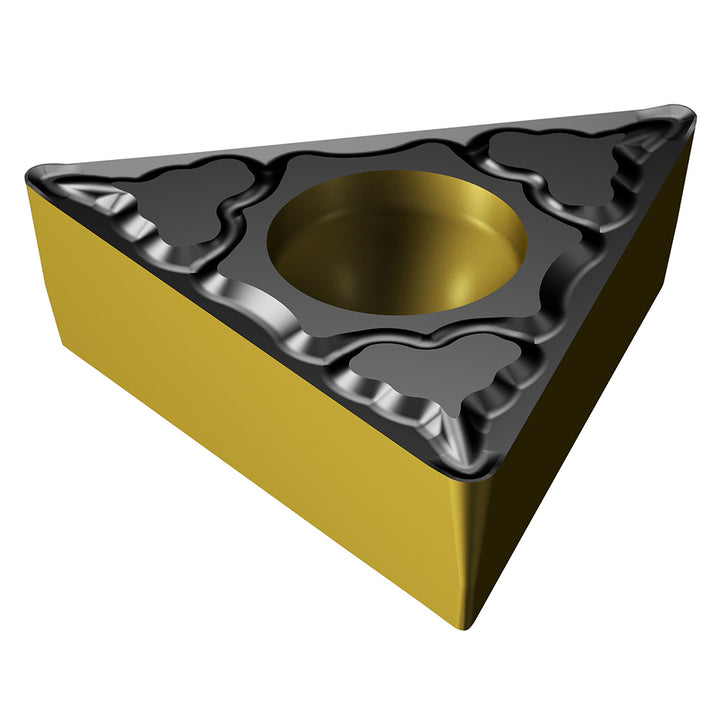

The Sandvik Coromant 7861261 is a TCMT 22 04 08-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle60
Industry standard numberTCMT 22 04 08-PM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 08-PM 4425
Manufacturers catalog numberTCMT 432-PM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
