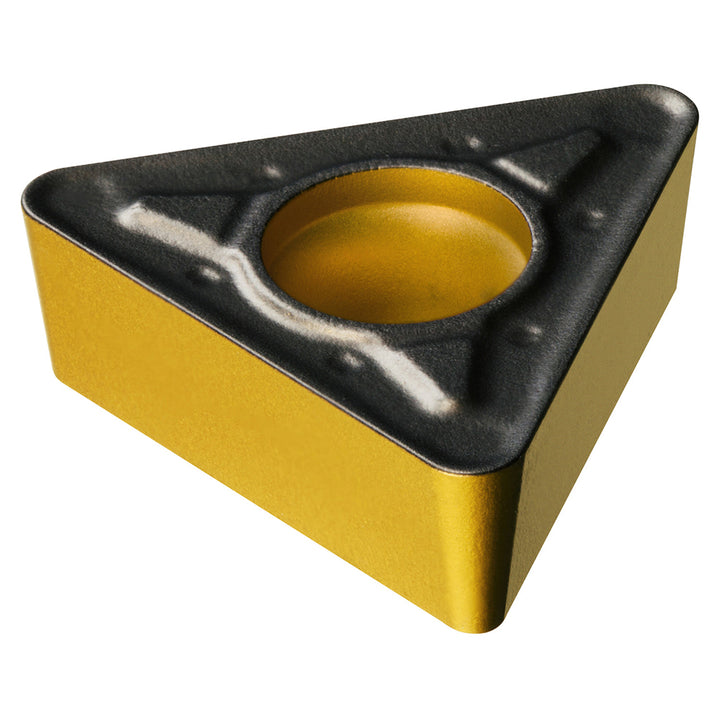

TCMT 22 04 12-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861263
MFR# 7861263ISO/ANSI# TCMT220412Cat# TCMT 433-PRSeries CoroTurn 107
$30.32List $38.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861263 is a TCMT 22 04 12-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Ansi insert codeTCMT433
Ansi size code433
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTCMT 22 04 12-PR 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code220412
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 12-PR 4425
Iso insert codeTCMT220412
Iso size code220412
Manufacturers catalog numberTCMT 433-PR
Manufacturer grade4425
Relief angle7
Side clearancePositive
Tolerance codeM
