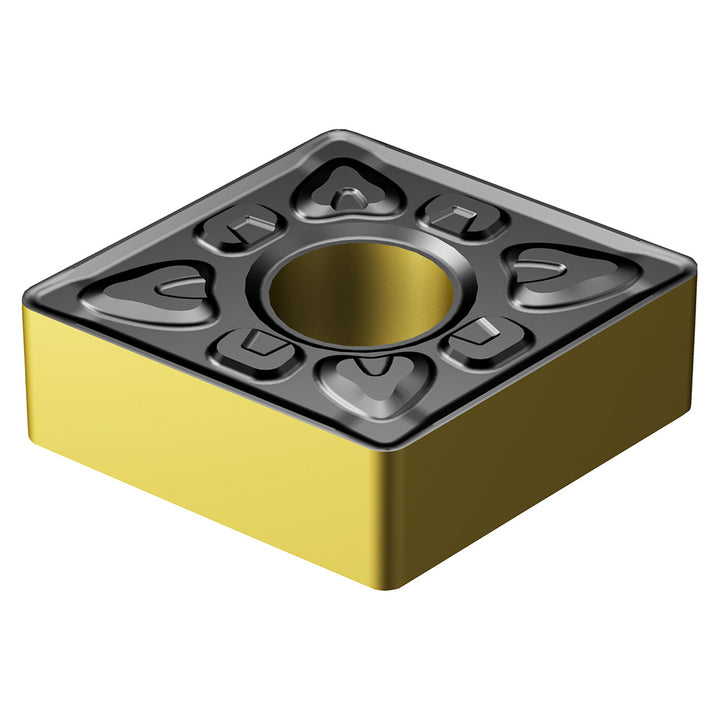

CNMG 16 06 12-XMR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861275
MFR# 7861275ISO/ANSI# CNMG 16 06 12-XMR 4425Cat# CNMG 543-XMRSeries T-Max P
$32.94List $42.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861275 is a CNMG 16 06 12-XMR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberCNMG 16 06 12-XMR 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code160612
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-XMR 4425
Manufacturers catalog numberCNMG 543-XMR
Manufacturer grade4425
Relief angle0
Tolerance codeM
