Sandvik Coromant
SNMG 12 04 08-XM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861279
MFR# 7861279ISO/ANSI# SNMG 12 04 08-XM 4425Cat# SNMG 432-XMSeries T-Max P
$20.77List $26.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingAl2O3
Description

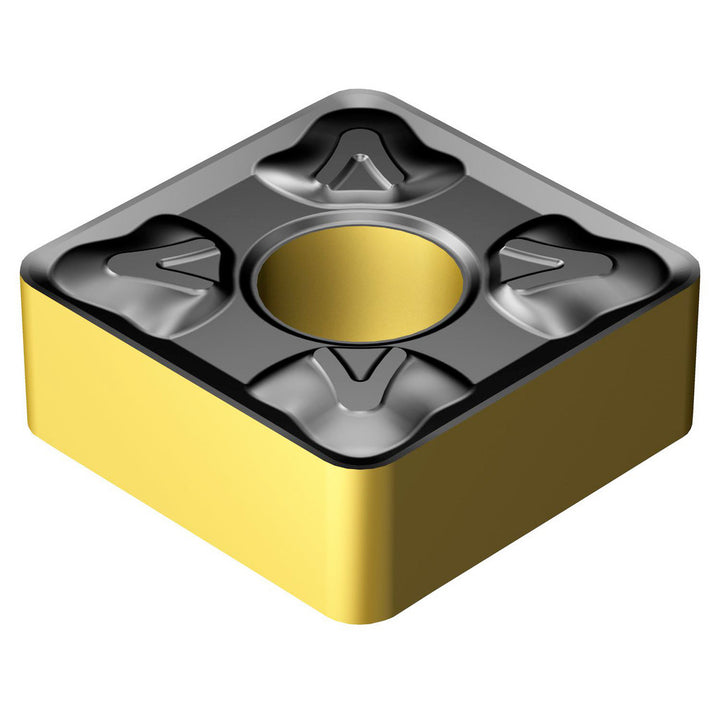

The Sandvik Coromant 7861279 is a SNMG 12 04 08-XM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerXM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Hole diameter0.2030
Industry standard numberSNMG 12 04 08-XM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-XM 4425
Manufacturers catalog numberSNMG 432-XM
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
