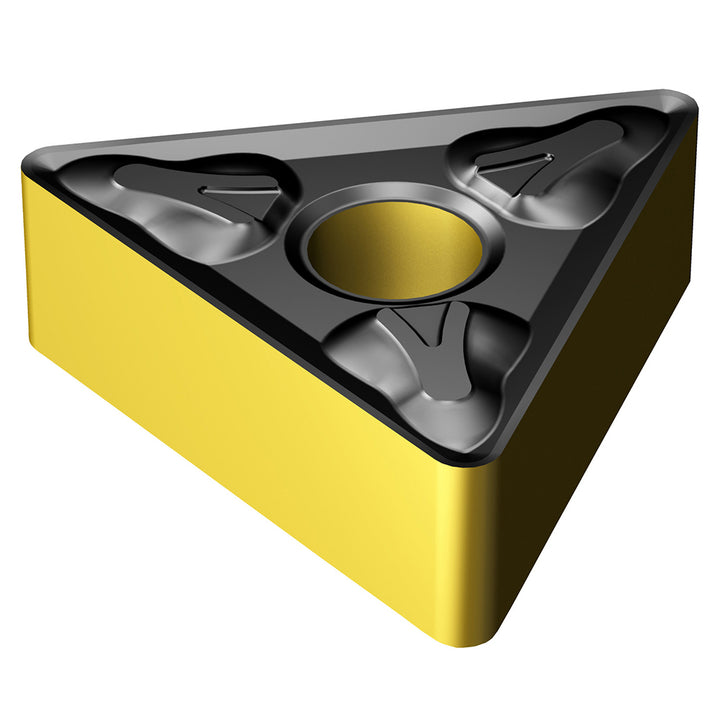

TNMG 16 04 08-XM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861283
MFR# 7861283ISO/ANSI# TNMG 16 04 08-XM 4425Cat# TNMG 332-XMSeries T-Max P
$18.57List $23.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861283 is a TNMG 16 04 08-XM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle60
Industry standard numberTNMG 16 04 08-XM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code160408
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-XM 4425
Manufacturers catalog numberTNMG 332-XM
Manufacturer grade4425
Relief angle0
Tolerance codeM
