Sandvik Coromant

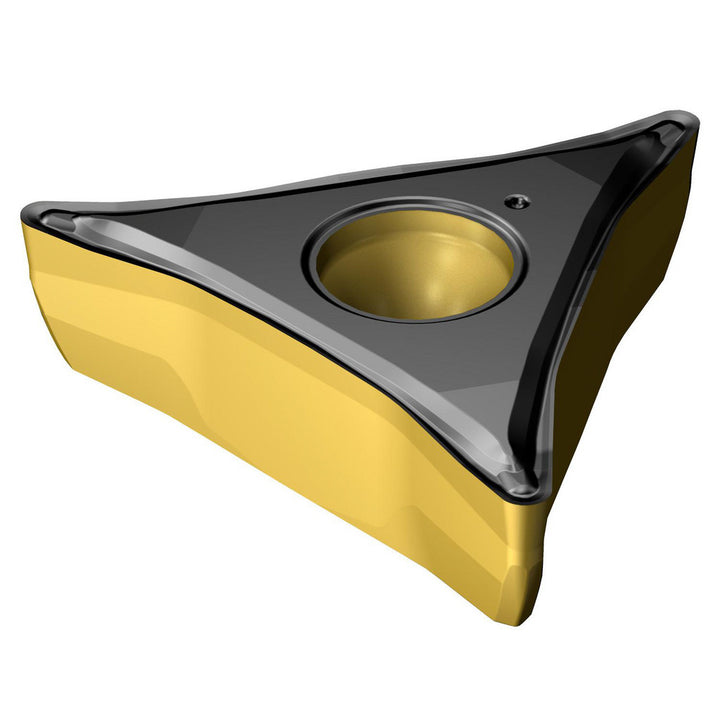

CP-A1108-L3 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7910738
MFR# 7910738ISO/ANSI# CP-A1108-L3 4425Cat# CP-A1108-L3 4425Series CoroTurn Prime
$43.17
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7910738 is a CP-A1108-L3 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerL3
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1457
Inscribed circle0.1457
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code11
Insert styleCPA
Insert thickness0.2362
Iso codeCP-A1108-L3 4425
Manufacturers catalog numberCP-A1108-L3 4425
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle6
Wiper edgeNo
