Sandvik Coromant

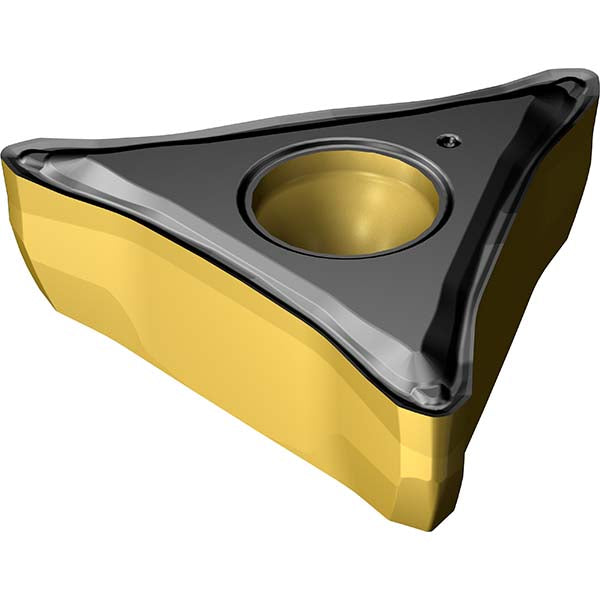

CP-A1108-L3WX 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7910739
MFR# 7910739ISO/ANSI# CP-A1108-L3WX 4425Cat# CP-A1108-L3WX 4425Series CoroTurn Prime
$39.74List $43.42
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7910739 is a CP-A1108-L3WX 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerL3WX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Hole diameter0.1457
Included angle80
Inscribed circle0.4331
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeIrregular
Insert size code11
Insert styleCPA
Insert thickness0.2362
Iso codeCP-A1108-L3WX 4425
Manufacturers catalog numberCP-A1108-L3WX 4425
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle6
Wiper edgeYes
