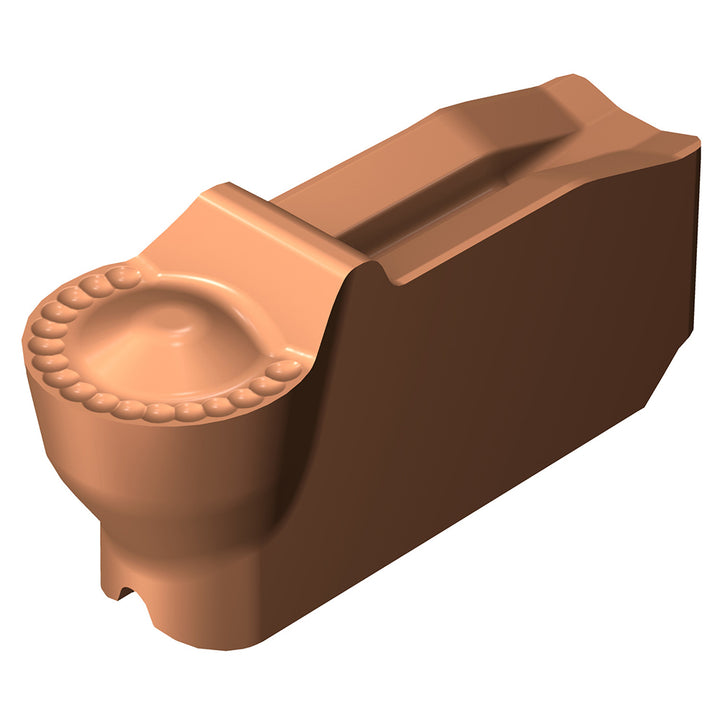

QI-NH-0400-RM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 7937629

Sandvik Coromant

QI-NH-0400-RM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 7937629

MFR# 7937629ISO/ANSI# QI-NH-0400-RM 1125Series CoroCut QI

$21.59List $27.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 7937629 is a QI-NH-0400-RM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, cast iron.

Specifications

ApplicationsProfiling; Turning
ChipbreakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.0788
Hole diameter0.0000
Included angle360
Inscribed circle0.1576
Insert handNeutral
Insert height0.1241
Insert holding methodClamp
Insert materialCarbide
Insert size code0400
Insert styleQI
Iso codeQI-NH-0400-RM 1125
Manufacturer grade1125
Material gradeM25; S25
Maximum depth of cut0.0788
Msc manufacturer numberQI-NH-0400-RM 1125
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
RakePositive
Relief angle8
Secondary workpiece materialStainless Steel
ShapeRectangle
StandardsQI-NH-0400-RM 1125; QI-NH-0400-RM 1125
Thickness0.1241
Width0.1576
