Sandvik Coromant

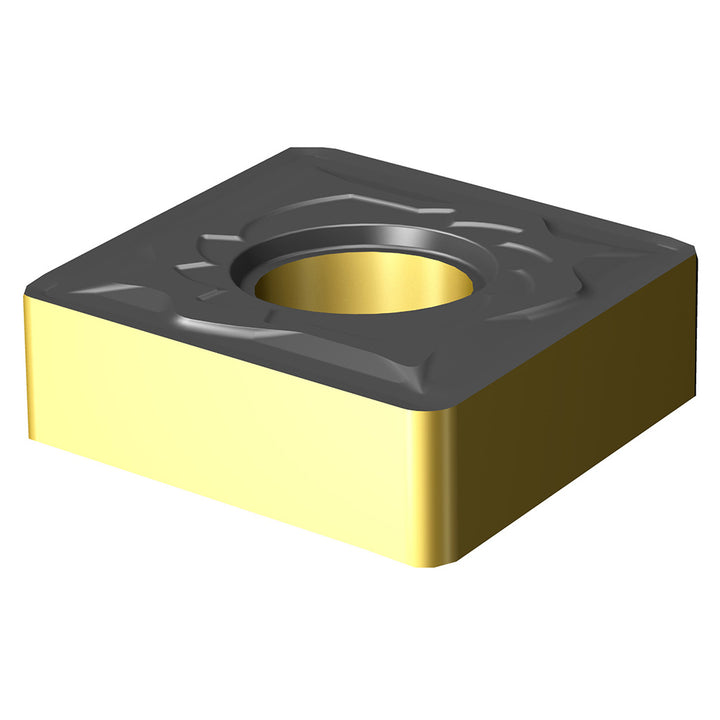

CNMG 12 04 16-SMR S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003604
MFR# 8003604ISO/ANSI# CNMG 12 04 16-SMR S205Cat# CNMG 12 04 16-SMR S205Series T-Max P
$19.41List $24.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003604 is a CNMG 12 04 16-SMR S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 16-SMR S205
Manufacturers catalog numberCNMG 12 04 16-SMR S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
