Sandvik Coromant

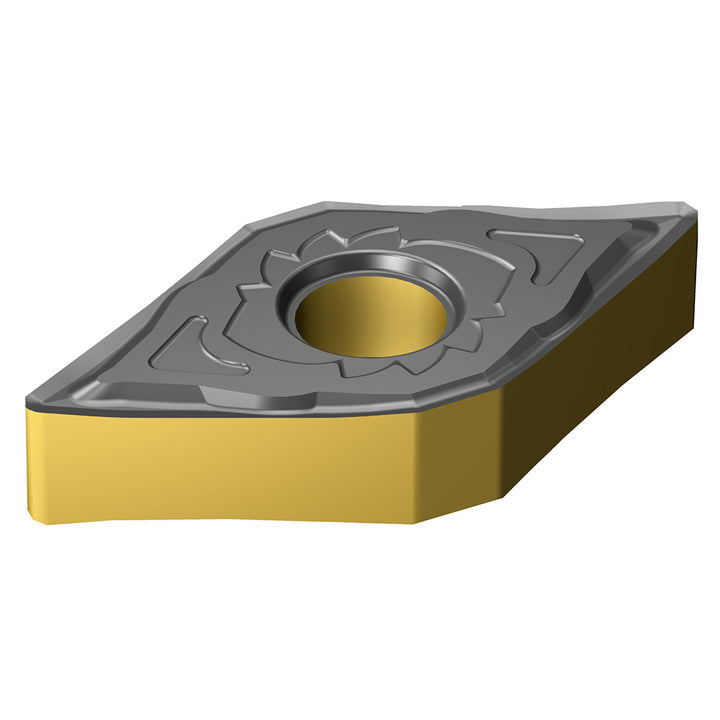

DNGG 15 04 04-SGF S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003605
MFR# 8003605ISO/ANSI# DNGG 15 04 04-SGF S205Cat# DNGG 15 04 04-SGF S205Series T-Max P
$26.51List $34.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003605 is a DNGG 15 04 04-SGF S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG 15 04 04-SGF S205
Manufacturers catalog numberDNGG 15 04 04-SGF S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeG
