Sandvik Coromant

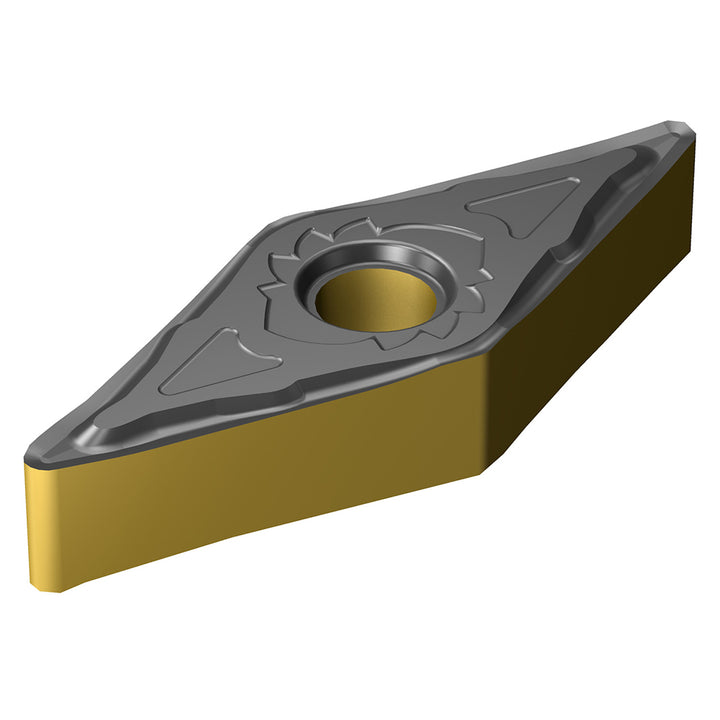

VNGG 16 04 04-SGF S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003619
MFR# 8003619ISO/ANSI# VNGG160404Cat# VNGG 16 04 04-SGF S205Series T-Max P
$43.88List $55.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003619 is a VNGG 16 04 04-SGF S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Ansi insert codeVNGG331
Ansi size code331
Chip breakerSGF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code1604
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG 16 04 04-SGF S205
Iso insert codeVNGG160404
Iso size code160404
Manufacturers catalog numberVNGG 16 04 04-SGF S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Side clearanceNegative
Tolerance codeG
