Sandvik Coromant

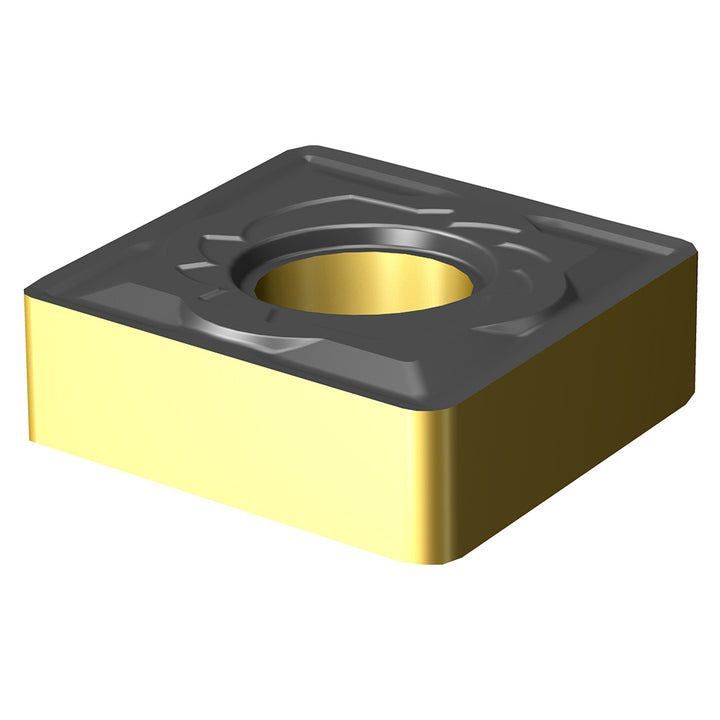

CNMG 12 04 08-SM S205 Carbide Insert, Grade S205, Al2O3 - Sandvik Coromant 8003626
MFR# 8003626ISO/ANSI# CNMG 12 04 08-SM S205Cat# CNMG432-SMSeries T-Max P
$19.41List $24.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS205
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 8003626 is a CNMG 12 04 08-SM S205 carbide indexable insert, grade S205, Al2O3 coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Industry standard numberCNMG 12 04 08-SM S205
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-SM S205
Manufacturers catalog numberCNMG432-SM
Manufacturer gradeS205
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
