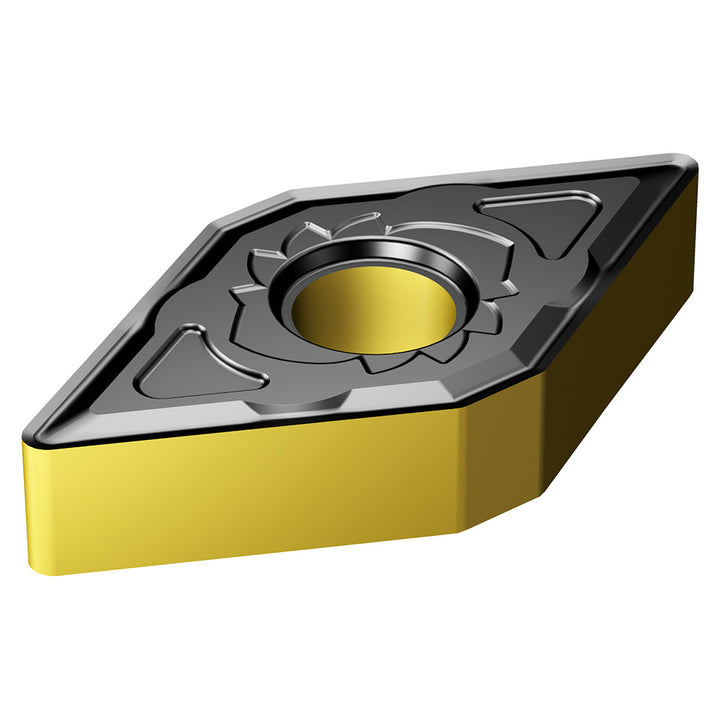

DNMG 15 04 08-SM S205 Carbide Insert, Grade S205, Al2O3 - Sandvik Coromant 8003629

MFR# 8003629ISO/ANSI# DNMG150408Cat# DNMG432-SMSeries T-Max P

$26.39List $33.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeS205
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 8003629 is a DNMG 15 04 08-SM S205 carbide indexable insert, grade S205, Al2O3 coated. Suited for superalloy, titanium.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerSM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance
Hole diameter0.2030
Included angle55
Industry standard numberDNMG 15 04 08-SM S205
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code1504
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-SM S205
Iso insert codeDNMG150408
Iso size code150408
Manufacturers catalog numberDNMG432-SM
Manufacturer gradeS205
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
