Sandvik Coromant

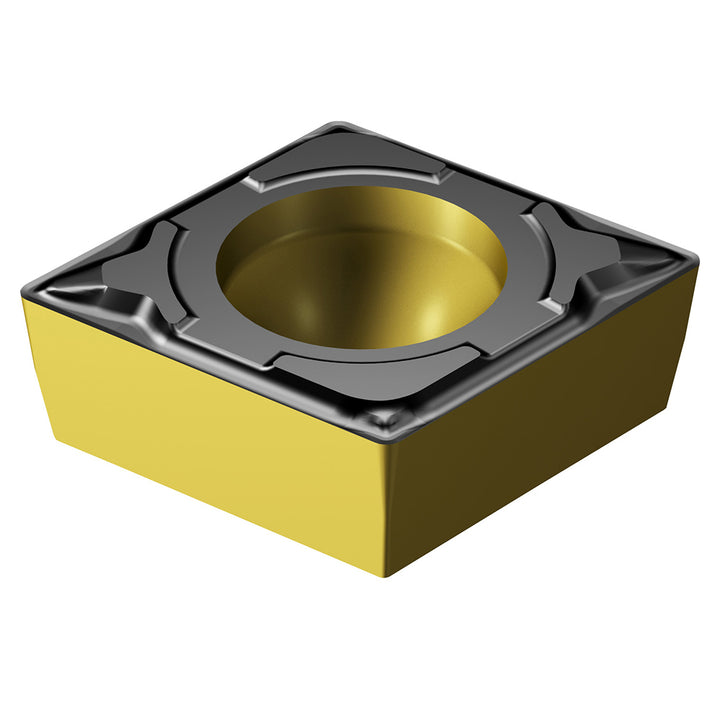

CCMT 09 T3 08-MF S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003657
MFR# 8003657ISO/ANSI# CCMT 09 T3 08-MF S205Cat# CCMT 09 T3 08-MF S205Series CoroTurn 107
$16.72List $21.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003657 is a CCMT 09 T3 08-MF S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 08-MF S205
Manufacturers catalog numberCCMT 09 T3 08-MF S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
