Sandvik Coromant

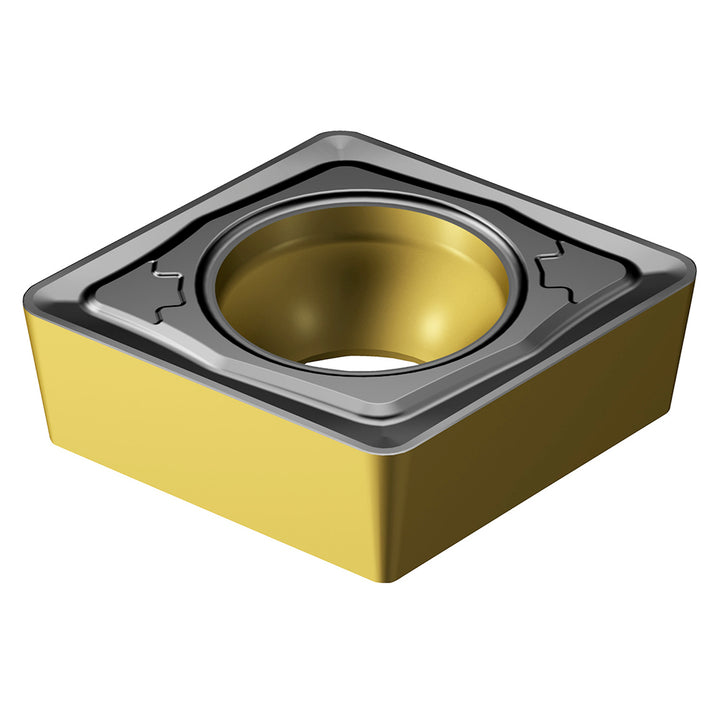

CCMT 09 T3 08-PMC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019344
MFR# 8019344ISO/ANSI# CCMT 09 T3 08-PMC 4425Cat# CCMT 09 T3 08-PMC 4425Series CCMT-PMC
$18.12List $22.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019344 is a CCMT 09 T3 08-PMC 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPMC
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 08-PMC 4425
Manufacturers catalog numberCCMT 09 T3 08-PMC 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
