Sandvik Coromant

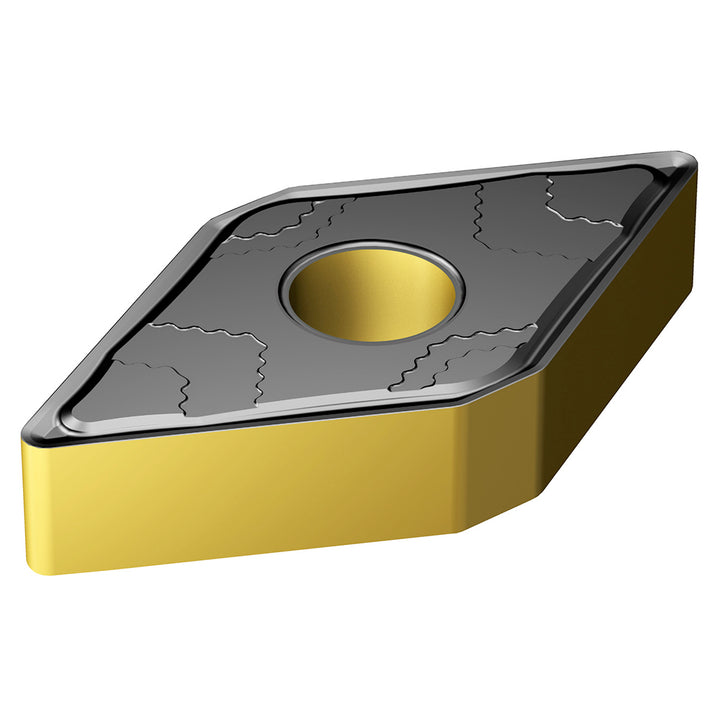

DNMG 15 04 04-PMC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019381
MFR# 8019381ISO/ANSI# DNMG 15 04 04-PMC 4425Cat# DNMG 15 04 04-PMC 4425Series DNMG-PMC
$26.10List $33.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019381 is a DNMG 15 04 04-PMC 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPMC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 04-PMC 4425
Manufacturers catalog numberDNMG 15 04 04-PMC 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
