Sandvik Coromant

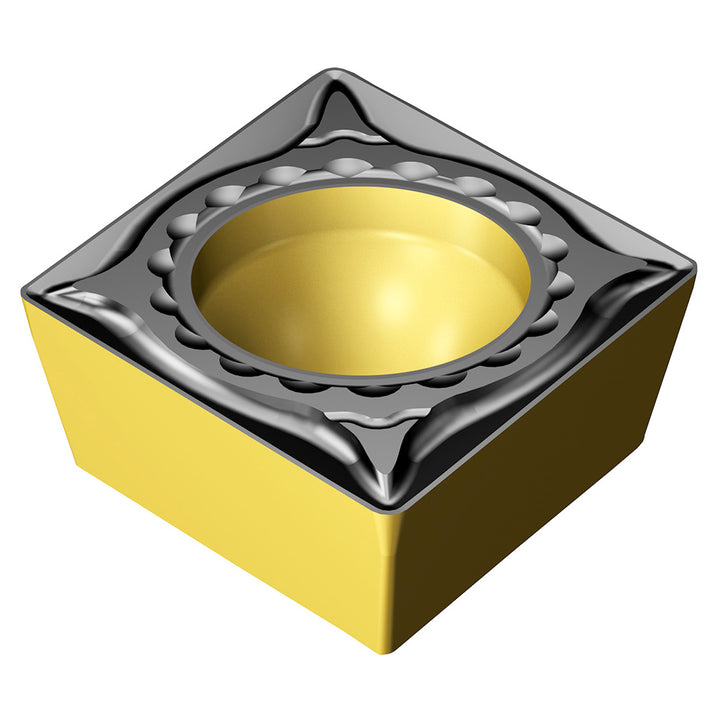

CPMT 06 02 04-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019498
MFR# 8019498ISO/ANSI# CPMT060204Cat# CPMT 06 02 04-PM 4425Series CPMT-PM
$14.74List $18.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019498 is a CPMT 06 02 04-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCPMT21.51
Ansi size code21.51
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCPMT
Insert thickness0.0938
Iso codeCPMT 06 02 04-PM 4425
Iso insert codeCPMT060204
Iso size code060204
Manufacturers catalog numberCPMT 06 02 04-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Side clearancePositive
Tolerance codeM
