Sandvik Coromant

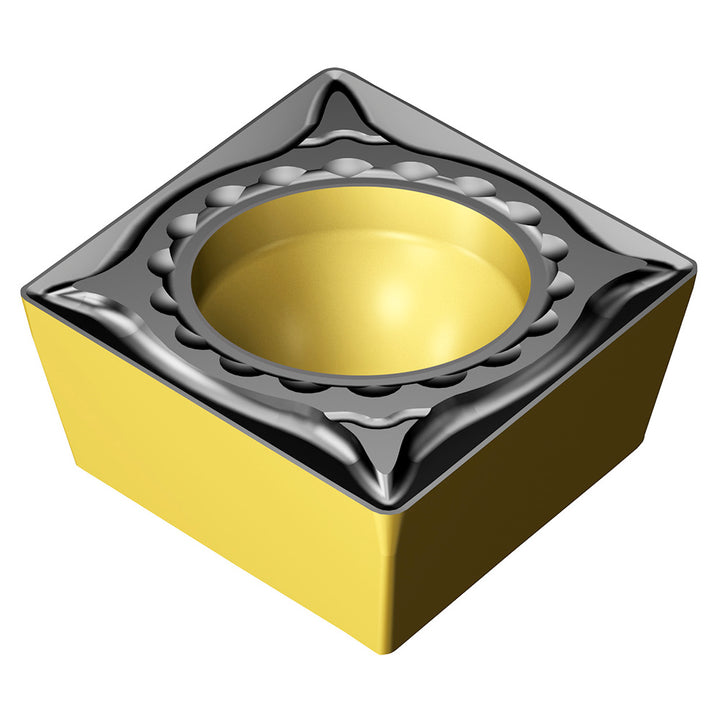

CPMT 09 T3 04-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019500
MFR# 8019500ISO/ANSI# CPMT 09 T3 04-PM 4425Cat# CPMT 09 T3 04-PM 4425Series CPMT-PM
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019500 is a CPMT 09 T3 04-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code32.51
Insert styleCPMT
Insert thickness0.1563
Iso codeCPMT 09 T3 04-PM 4425
Manufacturers catalog numberCPMT 09 T3 04-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
