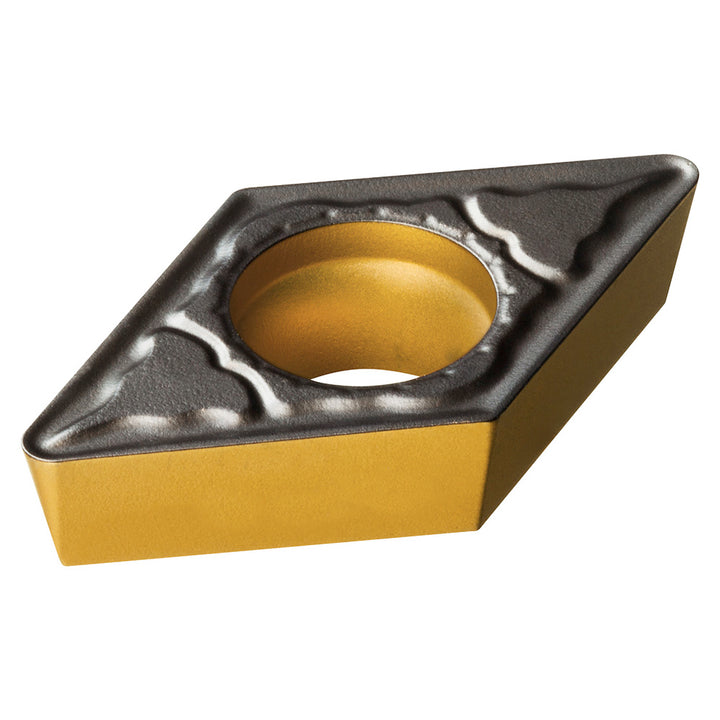

DPMT 07 02 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019503
MFR# 8019503ISO/ANSI# DPMT070208Cat# DPMT 07 02 08-PM 4425Series DPMT-PM
$15.91List $20.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019503 is a DPMT 07 02 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDPMT21.52
Ansi size code21.52
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.52
Insert styleDPMT
Insert thickness0.0938
Iso codeDPMT 07 02 08-PM 4425
Iso insert codeDPMT070208
Iso size code070208
Manufacturers catalog numberDPMT 07 02 08-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Side clearancePositive
Tolerance codeM
