Sandvik Coromant

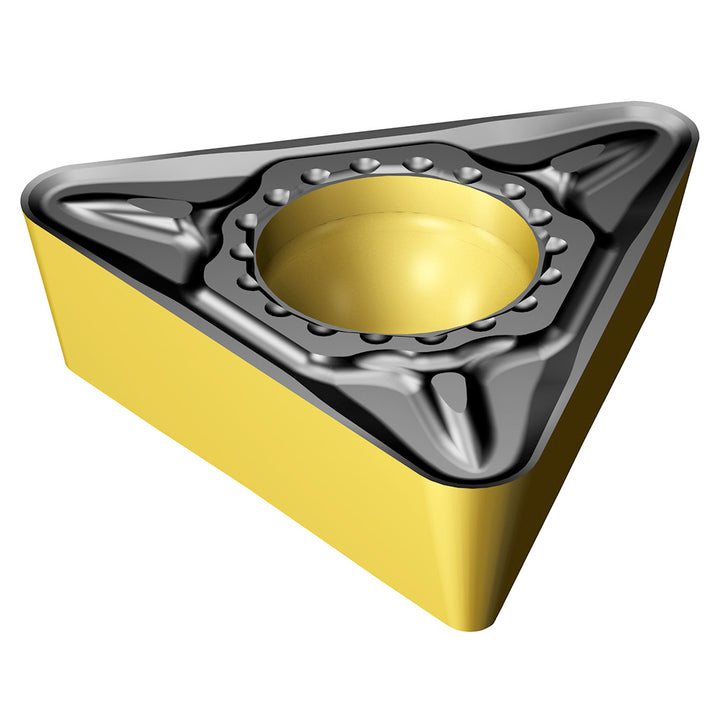

TPMT 11 03 04-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019508
MFR# 8019508ISO/ANSI# TPMT 11 03 04-PM 4425Cat# TPMT 11 03 04-PM 4425Series TPMT-PM
$18.23List $23.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019508 is a TPMT 11 03 04-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT 11 03 04-PM 4425
Manufacturers catalog numberTPMT 11 03 04-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
