Sandvik Coromant

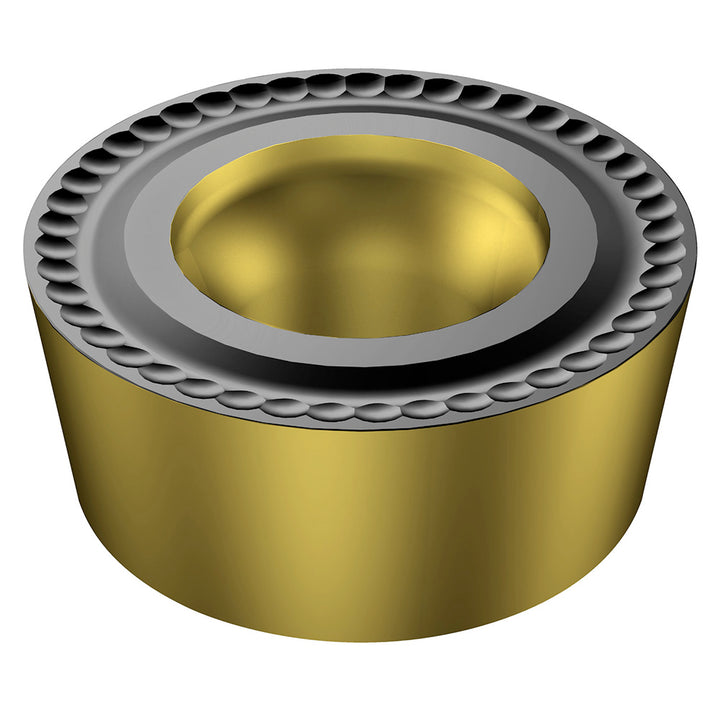

RCMT 09 T3 00-M0 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019528
MFR# 8019528ISO/ANSI# RCMT 09 T3 00-M0 4425Cat# RCMT 09 T3 00-M0 4425Series RCMT-M0 (INCH)
$14.54List $18.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019528 is a RCMT 09 T3 00-M0 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/16
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code09T3
Insert styleRCMT
Insert thickness0.1563
Iso codeRCMT 09 T3 00-M0 4425
Manufacturers catalog numberRCMT 09 T3 00-M0 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
