Sandvik Coromant

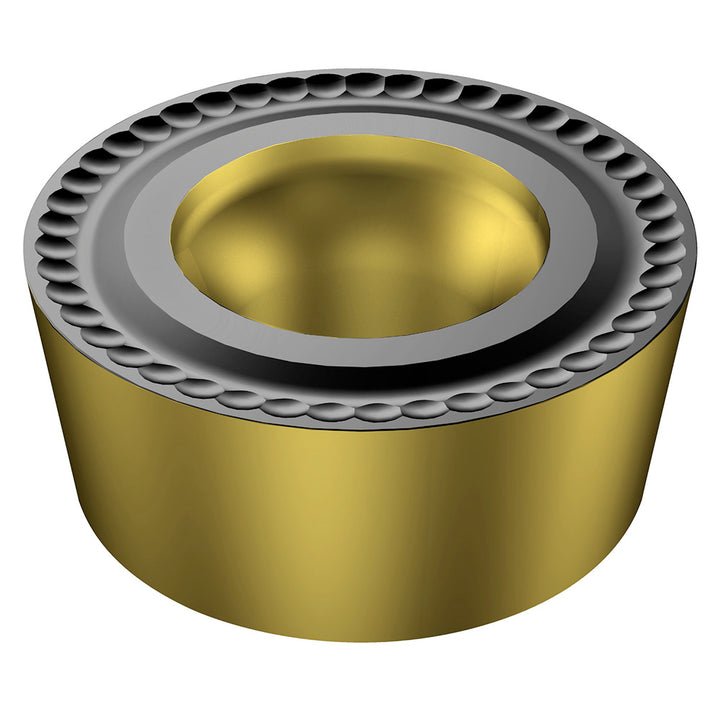

RCMT 12 04 00-M0 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019529
MFR# 8019529ISO/ANSI# RCMT 12 04 00-M0 4425Cat# RCMT 12 04 00-M0 4425Series RCMT-M0 (INCH)
$18.20List $23.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019529 is a RCMT 12 04 00-M0 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00-M0 4425
Manufacturers catalog numberRCMT 12 04 00-M0 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
