Sandvik Coromant
RCMT 20 06 M0 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019533
MFR# 8019533ISO/ANSI# RCMT 20 06 M0 4425Cat# RCMT 20 06 M0 4425Series RCMT
$49.51List $63.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade4425
MaterialCarbide
CoatingTiCN
Description

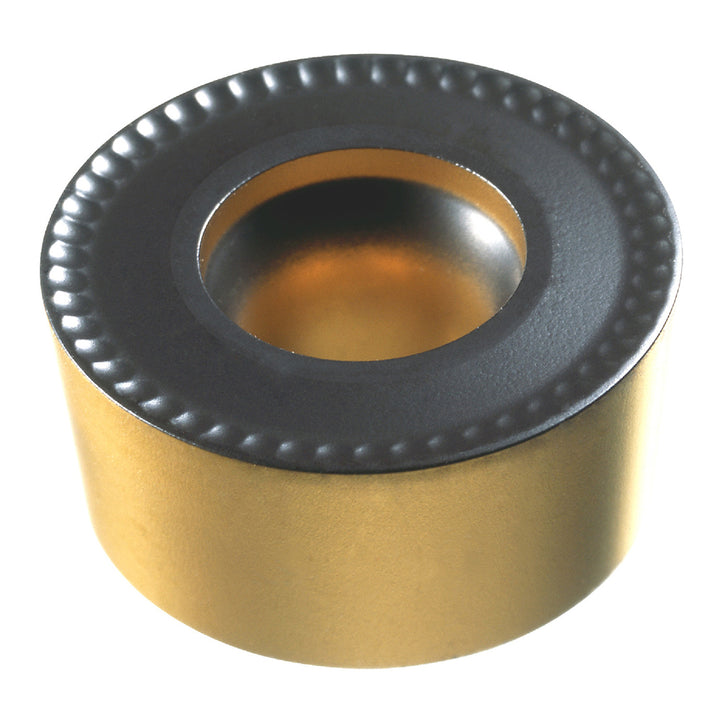

The Sandvik Coromant 8019533 is a RCMT 20 06 M0 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Inscribed circle0.7874
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeRound
Insert size code2006
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT 20 06 M0 4425
Manufacturers catalog numberRCMT 20 06 M0 4425
Manufacturer grade4425
Primary workpiece materialSteel
Tolerance codeM
