Sandvik Coromant

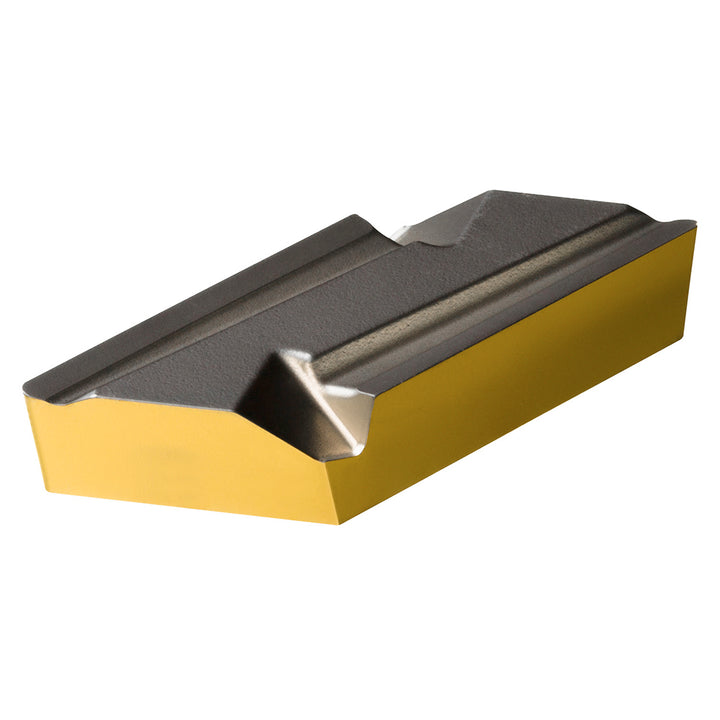

KNUX 16 04 05R12 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019541
MFR# 8019541ISO/ANSI# KNUX 16 04 05R12 4425Cat# KNUX 16 04 05R12 4425Series KNUX
$29.75List $38.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019541 is a KNUX 16 04 05R12 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker12
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code1604
Insert styleKNUX
Insert thickness in3/16
Iso codeKNUX 16 04 05R12 4425
Manufacturers catalog numberKNUX 16 04 05R12 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeU
Width0.3750
