Sandvik Coromant

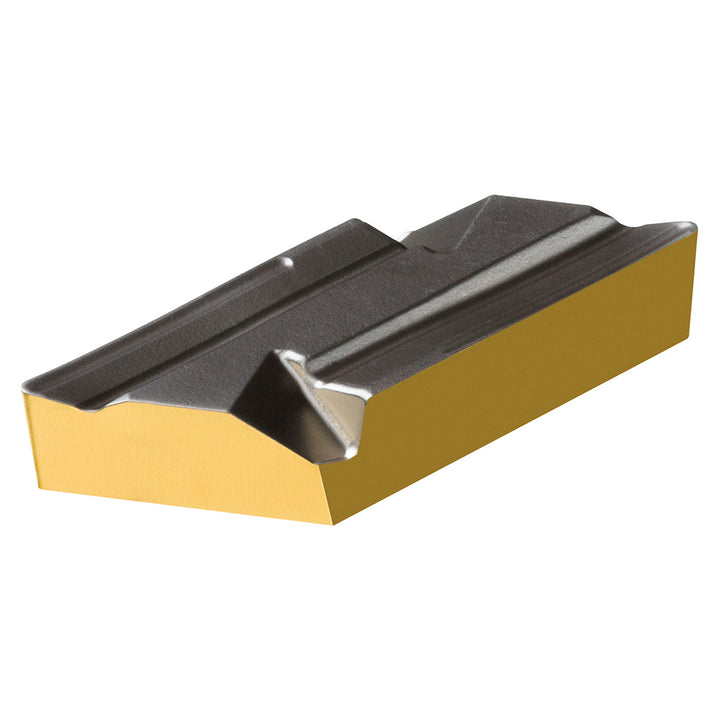

KNMX 16 04 10 L-71 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019546
MFR# 8019546ISO/ANSI# KNMX 16 04 10 L-71 4425Cat# KNMX 16 04 10 L-71 4425Series KNMX
$28.92List $37.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019546 is a KNMX 16 04 10 L-71 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker71
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code1604
Insert styleKNMX
Insert thickness in3/16
Iso codeKNMX 16 04 10 L-71 4425
Manufacturers catalog numberKNMX 16 04 10 L-71 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Width0.3750
