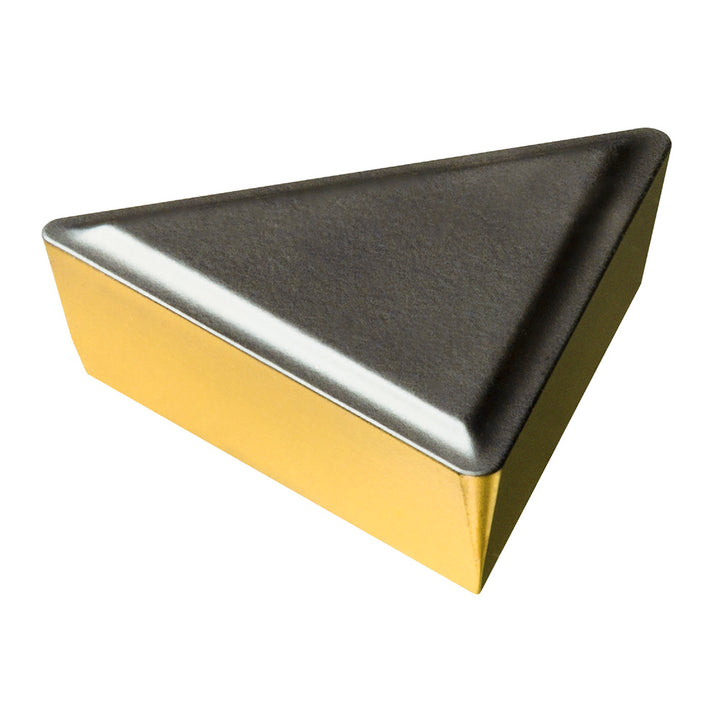

TPMR 09 02 04 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019550
MFR# 8019550ISO/ANSI# TPMR090204Cat# TPMR 09 02 04 4425Series TPMR
$12.59List $16.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019550 is a TPMR 09 02 04 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTPMR1.81.51
Ansi size code1.81.51
Chip breaker53
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle0.2188
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.81.5
Insert styleTPMR
Insert thickness0.0938
Iso codeTPMR 09 02 04 4425
Iso insert codeTPMR090204
Iso size code090204
Manufacturers catalog numberTPMR 09 02 04 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Side clearancePositive
Tolerance codeM
