Sandvik Coromant

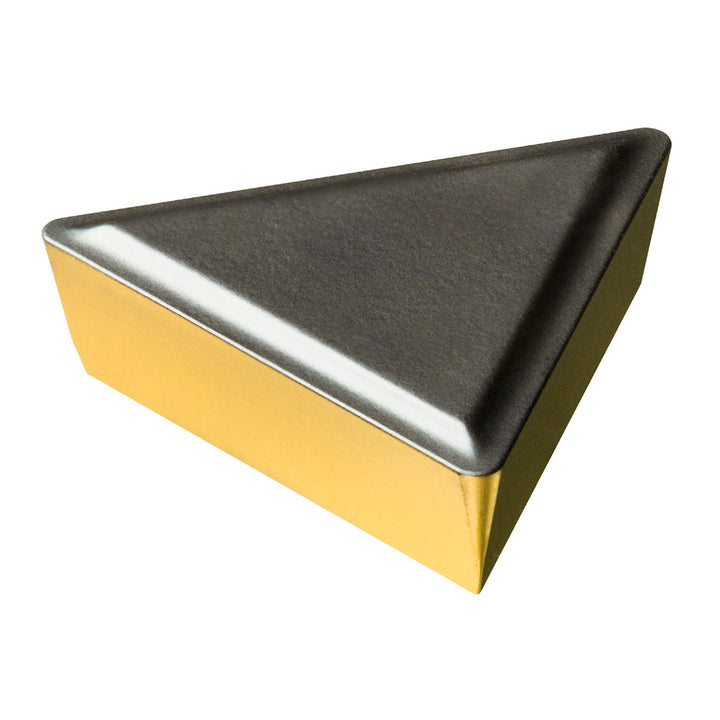

TPMR 16 03 04 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019552
MFR# 8019552ISO/ANSI# TPMR 16 03 04 4425Cat# TPMR 16 03 04 4425Series TPMR
$18.64List $23.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019552 is a TPMR 16 03 04 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code1603
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 16 03 04 4425
Manufacturers catalog numberTPMR 16 03 04 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
