Sandvik Coromant

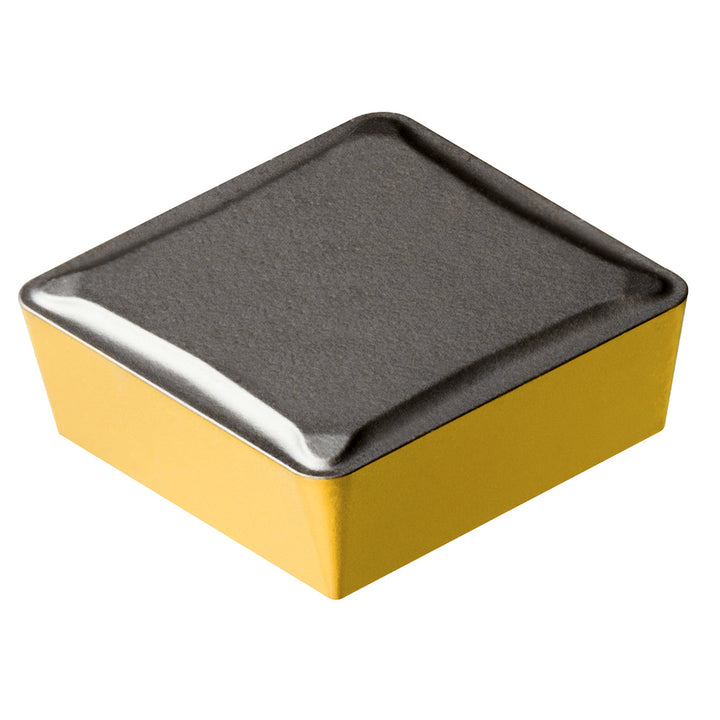

SPMR 12 03 04-53 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019563
MFR# 8019563ISO/ANSI# SPMR120304Cat# SPMR120304534425Series SPMR-53
$21.27List $27.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019563 is a SPMR 12 03 04-53 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeSPMR421
Ansi size code421
Chip breaker53
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert shapeS - Square
Insert size code421
Insert styleSPMR
Insert thickness in1/8
Iso codeSPMR 12 03 04-53 4425
Iso insert codeSPMR120304
Iso size code120304
Manufacturers catalog numberSPMR120304534425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Side clearancePositive
Tolerance codeM
