Sandvik Coromant

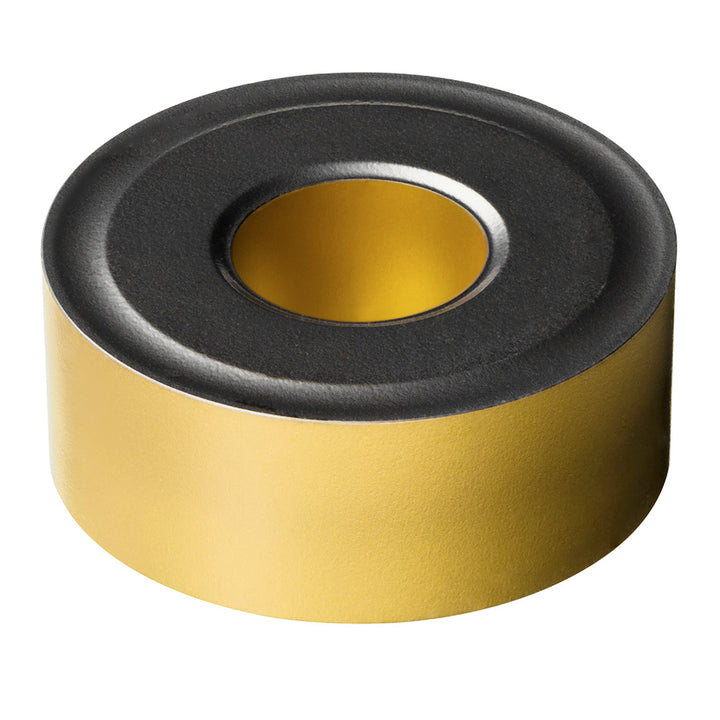

RNMG 15 06 00 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019571
MFR# 8019571ISO/ANSI# RNMG 15 06 00 4425Cat# RNMG 15 06 00 4425Series RNMG
$27.20List $34.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019571 is a RNMG 15 06 00 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in5/16
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1506
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG 15 06 00 4425
Manufacturers catalog numberRNMG 15 06 00 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
