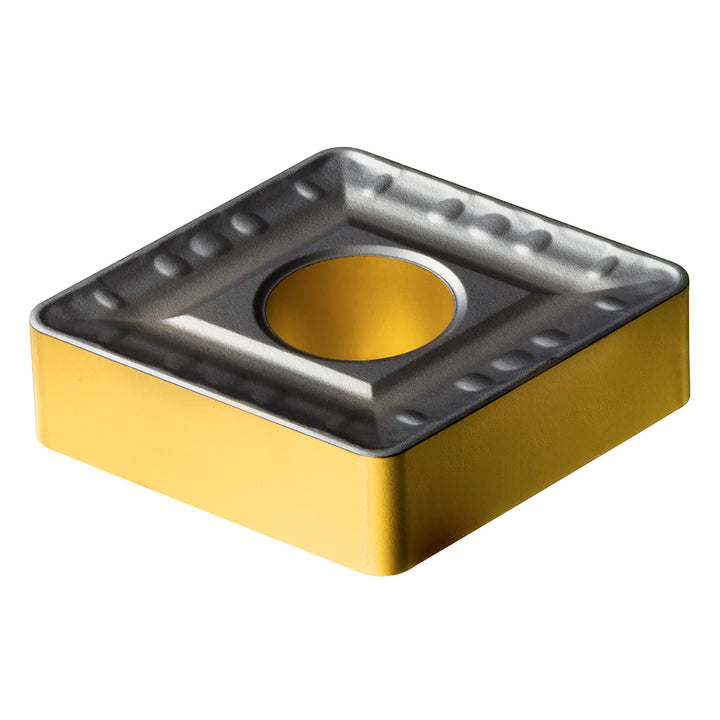

CNMM 19 06 16-HR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019589
MFR# 8019589ISO/ANSI# CNMM 19 06 16-HR 4425Cat# CNMM 19 06 16-HR 4425Series T-Max P
$55.71List $70.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019589 is a CNMM 19 06 16-HR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerHR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 19 06 16-HR 4425
Manufacturers catalog numberCNMM 19 06 16-HR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
