Sandvik Coromant

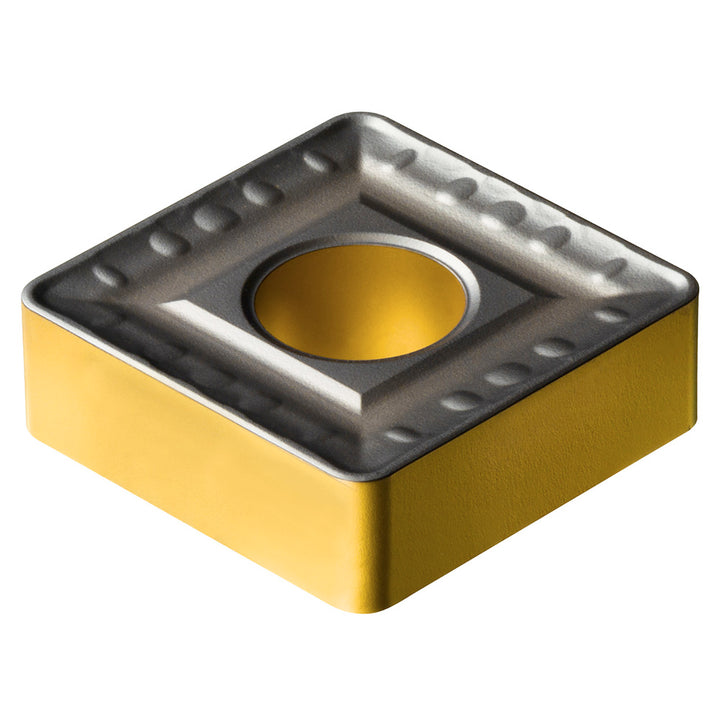

SNMM 25 09 24-HR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019597
MFR# 8019597ISO/ANSI# SNMM 25 09 24-HR 4425Cat# SNMM 25 09 24-HR 4425Series SNMM-HR
$104.74List $132.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019597 is a SNMM 25 09 24-HR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerHR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0938
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code2509
Insert styleSNMM
Insert thickness0.3750
Iso codeSNMM 25 09 24-HR 4425
Manufacturers catalog numberSNMM 25 09 24-HR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
